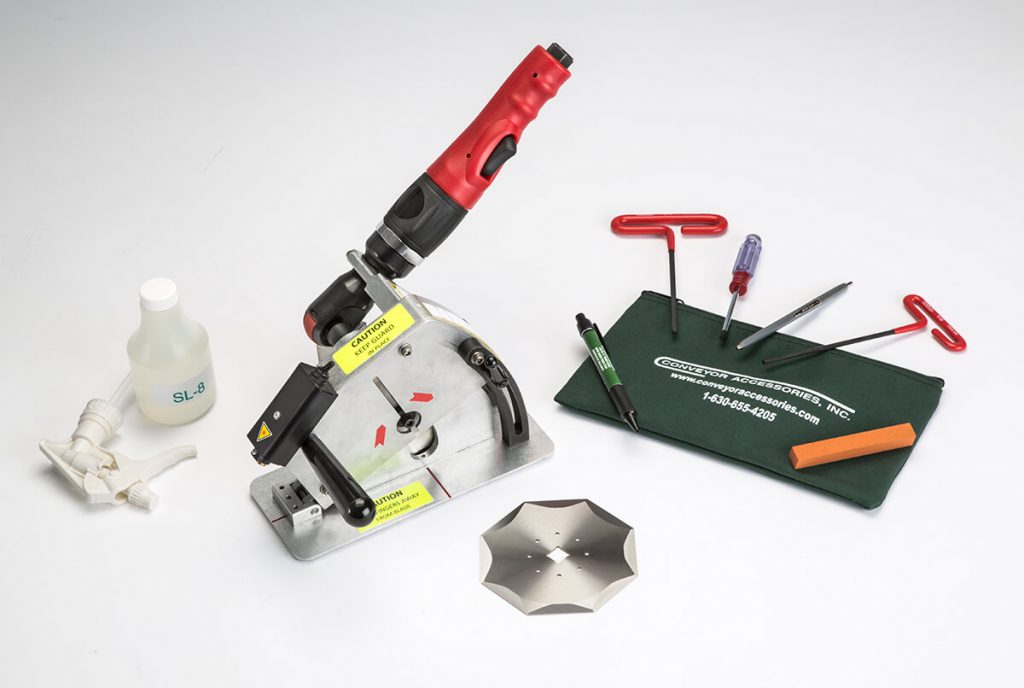

Air Powered Belt Cutters

Air powered belt cutters are lightweight and easy to handle. They are capable of cutting through rubber and PVC up to 1½” thick. Included with the purchase of an air powered belt cutter is a laser guide (batteries included), a belt marking pen, a sharpening stone, two hex key wrenches, a laser screwdriver, SL-8 spray lubricant, instructions, and a convenient tote bag (not shown). Additional 1½” capacity blades may be purchased separately.

Number
APC-1.5
APC-1.5 BLADE
Air Powered Conveyor Belt Cutters.

Battery-Powered Belt Cutters

Battery-powered belt cutters are lightweight and easy to handle. They are capable of cutting through rubber and PVC up to 1″ thick. Included with the purchase of a battery-powered belt cutter are two batteries, a charger, a laser guide (batteries included), a belt marking pen, a sharpening stone, two hex key wrenches, a laser screwdriver, SL-8 spray lubricant, instructions, and a convenient tote bag (not shown). Additional 1″ capacity blades may be purchased separately.

Number
BPC-1.0
BPC-1.0 BLADE
Battery Powered Belt Cutters.

Replacement Blades

Number
APC-1.5 BLADE
BPC-1.0 BLADE
Replacement Blades.

Belt Marking Pen

A retractable ballpoint pen filled with a special silver ink for marking conveyor belts.

Item
Pen
Belt Marking Pen.

Belt ID Tool

Item
BT-1
Belt ID Tool.

Belt Handlers

Belt handlers make lifting and maneuvering belts easier. These sturdy belt handlers are sold in pairs.

Item
BH-3P
Belt Handlers.

Belt Cutter

The cutter has a double-edged blade that cuts in the push-and-pull mode as the blade penetrates deeper through the belt.

Item
C-12
C-24
C-36
C-48
C-60
Belt Cutter.

Belt Knife

The angled, off-set head uses increased leverage to make a clean cut through modern tough belt fabrics. Die cast metal construction. Pivots open for blade storage.

NumberDescription
BK-200belt knife w/ blade
BK-250heavy duty blades 5/pack
BK-300leather knife sheath
Belt Knife.

Electric Skiving Tool Kit

CAI’S Electric skiving tool kit (EST-KIT) quickly skives belts for fast and easy installation of mechanical fasteners.  Unit has 4 temperature settings for multiple rubber compounds.  Pressure enabled contacts heat blades precisely when cutting, maximizing blade life.  Clamping jaws adjust to accept blade widths from 2mm to 22mm.  Unit is 110V A/C.

NumberDescription
EST-KITIncludes skiving tool, ESTB-W6, ESTB-GAUGE & carrying case
ESTB-W31/4” (6mm) Wide Cutting Blade 10 pack
ESTB-W45/16” (8mm) Wide Cutting Blade 10 pack
ESTB-W513/32” (11mm) Wide Cutting Blade 10 pack
ESTB-W67/8” (22mm) Wide Cutting Blade 10 pack
Electric Belt Skiving Tool Kit.

Electric Skiving Tool - Fastener Size/Skive Length

Fastener SizeSkive Length
R-27/8"
R-31 3/16"
R-51 1/2"
R-5 1/2"1 3/4"
R-6 & R-82"
X3751 1/4"
X5501 3/8"
No. 11 1/8"
No. 1401 1/4"
No. 1901 1/2"
No. 1 1/41 1/4"
No. 1 1/21 7/16"
No. 21 3/4"

Skiver/Cutter

This new and innovative tool will skive your belt to the exact required dimensions and cut it, all in one setup. Typical belt splice preparation is required. edge Stops are located on both sides of the tool to center the belt.

Number
SKCU-36
SKCU-48
SKCU-54
SKCU-60
SKCU-72
SKCU-84
Conveyor Belt Skiver / Cutter.

Skiver/Cutter Extra Supplies

NumberDescription
SKCU-CBK1Cutter Blade Kit
SKCU-SBK1Skiver Blade Kit
SKCU-RATRatchet
SKCU-FK1Diamond File Kit

Skiver

Used to skive the cover off “rough top” belting to recess the belt lacing.

Item
RTBS-1
Conveyor belt skiver.

Bucket Opener

Professional tool quickly pries lid off plastic pails — no need for cutting.

Item
BLO-1
Bucket Opener.
