Belt Clamps

Conveyor Accessories lightweight aluminum belt clamps are the perfect tool for pulling conveyor belts together for quick repair, vulcanizing, and fastener installation. These clamps offer excellent gripping action with the uniquely designed built-in interlocking system. This eliminates the need for bolts or other types of mechanical devices. These versatile clamps have a load capacity of up to 3 tons. Sizes range from 20” to 96” belt widths.

Style 1

Style 1 Belt Clamps.

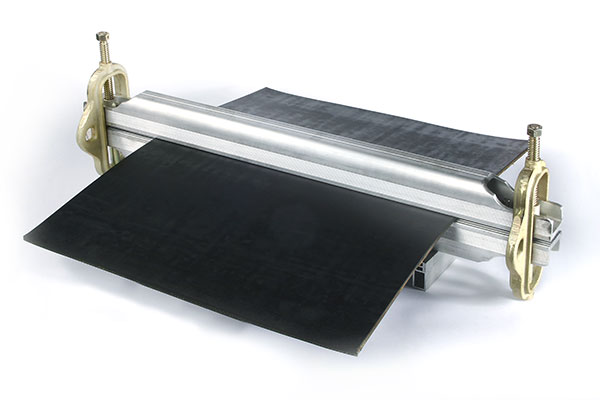

Style 2

Style 2 Belt Clamps.

Style 3

Style 3 Belt Clamps.
Weight For Complete Set (LBS.)
SizeStyle 1Style 2Style 3
20"53.254.864.8
24"58.660.270.2
30"64.466.076.0
36"73.475.085.0
42"80.482.092.0
48"88.289.899.8
54"96.097.6107.6
60"103.8105.4115.4
72"119.4121.0131.0
84"135.0136.6146.6
96"150.6152.2162.2

Belt Clamp Yokes

Conveyor Accessories offers two different styles of yokes along with the ever-popular scissor style. The #1 style yoke is design to travel up and down the clamp bars to accommodate various belt widths, while the #2 style yoke along with the #3 scissors are design to work on specific belt widths. These clamps are manufactured to the highest standards and will provide excellent service for the toughest of jobs.

#1 Yoke

Style 1 Belt Clamp Yoke.

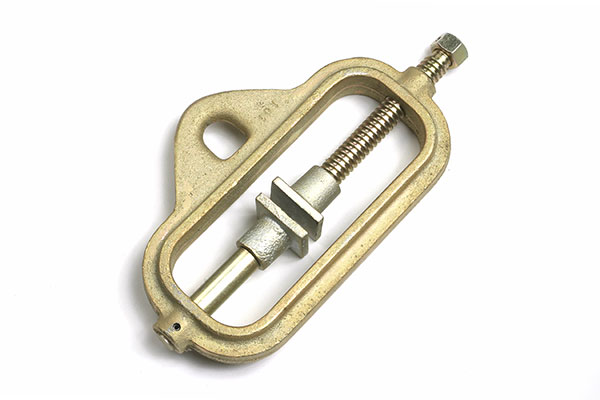

#2 Yoke

Style 2 Belt Clamp Yoke.

#3 Scissor

Style 3 Belt Clamp Scissor Yoke.
StyleWeight (LBS./ea.)
#1 Yoke Clamp6.4
#2 Yoke Clamp6.8
#3 Scissor Clamp9.3
