Hinged Plategrip™ Fasteners

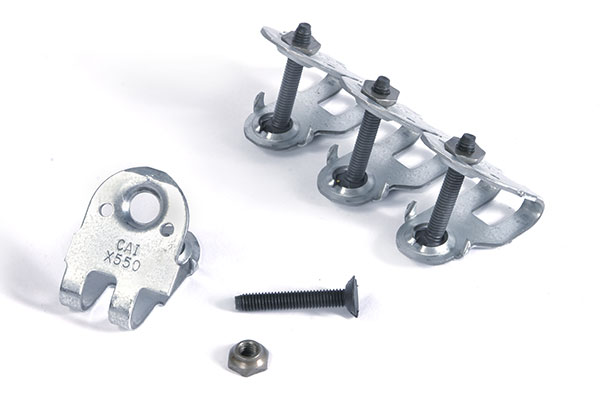

Hinged Plategrip™ Fastener.

The Hinged Plategrip fastener is ideally suited for applications where the loading and delivery points frequently change, such as mine, pit, quarry, and construction sites. As a compression-type fastener, secured by bolts, it provides tremendous holding power with good troughing action, while being readily separable after installation.

The hinged steel fastener can be used on all conveyor belts from 1/4″ to 5/8″ thick, and allows the joining of belts of varying thicknesses. First, determine the size specifications. Then, click on the Product Line tab above to view the complete Hinged Plategrip product line.

Hinged Plategrip Size Specifications

MIN. PULLEY DIAMETER BELT THICKNESS PIWSIZE
6"1/4"–13/32"200X375
9"1/4"–5/8"300X550

Hinged Steel

Hinged Steel is the most common and economical belt fastener material, and the standard for most applications. Steel Fasteners are plated to resist moisture and are available in matched sets ordered by width of belt or as X550-1, X550-3, X375-2, or X375-3, in bulk packs.

Hinged Plategrip™ Fastener.

Steel Matched Sets

X375-12
X375-14
X375-16
X375-18
X375-20
X375-24
X375-26
X375-30
X375-36
X375-42
X375-48
X375-60
X375-72
X550-hinged-plategrip

Steel Matched Sets

X550-16
X550-18
X550-20
X550-24
X550-26
X550-30
X550-36
X550-42
X550-48
X550-54
X550-60
X550-72
blank-3_2-ratio

Steel Bulk Packs (Includes Nuts & Bolts)

X375-2 (25 sets)
X375-3 (18 sets)
X550-1 (50 sets)
X550-3 (18 sets)

Hinged Stainless Steel

Hinged Stainless Steel fasteners – nickel and chrome alloy – are best for applications in which erosion is a major problem. Stainless steel is more resistant to abrasions, acids, chemicals, and magnetic attraction than standard steel. Plategrip fasteners are available in complete stainless sets.

Stainless Steel Matched Sets

X550-16S
X550-18S
X550-20S
X550-24S
X550-26S
X550-30S
X550-36S
X550-42S
X550-48S
X550-54S
X550-60S
X550-72S

Stainless Steel Matched Sets

X375-18S
X375-24S
X375-30S
X375-36S
X375-42S
X375-48S
X375-60S
X375-72S

Stainless Steel Bulk Packs (Includes Nuts & Bolts)

X375-2S (25 sets)
X375-3S (18 sets)
X550-1S (50 sets)

Hinged Durgard

Hinged Durgard is a special heat-treated steel with abrasion-resistant characteristics that provide several times the life of standard steel. Hinged Durgard fasteners are not recommended for use in highly corrosive environments, but are instead specially formulated for abrasive situations.

Durgard

X550-18D
X550-24D
X550-30D
X550-36D
X550-42D
X550-48D
X550-60D
X555-72D

Durgard Bulk Packs (Includes Nuts & Bolts)

X550-1D (50 SETS)

Hinged Plategrip™ Hinge Pins and Washers

NC Nylon-Covered Steel Cable
NC-12
NC-14
NC-16
NC-18
NC-20
NC-24
NC-26
NC-30
NC-36
NC-42
NC-48
NC-54
NC-60
NC-72
SC Bare Steel Cable
SC-12
SC-14
SC-16
SC-18
SC-20
SC-24
SC-26
SC-30
SC-36
SC-42
SC-48
SC-54
SC-60
SC-72
NCS Nylon-Covered Stainless Cable
NCS-16
NCS-18
NCS-20
NCS-24
NCS-26
NCS-30
NCS-36
NCS-42
NCS-48
NCS-54
NCS-60
NCS-72
SSC Bare Stainless Steel Cable
SSC-16
SSC-18
SSC-20
SSC-24
SSC-26
SSC-30
SSC-36
SSC-42
SSC-48
SSC-54
SSC-60
SSC-72
X550RW Retainer Washers*
* 50/Pack
X550RW

Hinged Plategrip Extra Supplies

Hinged Plategrip Steel Extra Parts*

Number Description
*Extra supplies for use with X375 and X550
X550NNuts 100/Pack
X550BBolts 100/Pack
X550CClips 100/Pack
X550FTFiller Tubing/Foot
X550NCCable/Foot
X550RWRetainer Washers 50/pack

Hinged Plategrip Stainless Steel Extra Supplies*

NumberDescription
*Extra supplies for use with X375S and X550S
X550NSNuts 100/Pack
X550BSBolts 100/Pack
X550NCSCable/Foot

Shipping Weights

Hinged Plategrip Shipping Weights (Lbs.)

SIZEWEIGHTSIZEWEIGHT
X375-183.3X550-183.3
X375-244.0X550-244.3
X375-264.5X550-264.9
X375-305.1X550-305.5
X375-366.3X550-366.5
X375-427.3X550-427.8
X375-488.3X550-488.8
X550-549.9
X375-6010.2X550-6010.5
X375-7212.6X550-7213.0
