The fastest, easiest, and safest system to install Riv-Nail conveyor belt fasteners.

Air Powered Hammer Kit

The RNAPD-KIT System includes one complete AP (air powered*) Driver, two RNAPD-5 Rivet Drivers, one In-Line Oiler, one 50′ ½” hose assembly, one High Flow Regulator ½” with gauge, two 8 oz. bottles of oil, one Oiler Wrench, one Coil Puller, and a storage box.
*Air compressor required

Number
RNAPD-KIT
ph_airpoweredhammerkit

Air Powered Hammer Accessories

DescriptionNumber
Air Powered HammerAPD-1
Rivet PunchAP5P
In-Line OilerAPO
50' ½" Hose AssemblyAPH-50
High Flow Regulator w/ Gauge APR-½
APD Oil — Heavy Duty 8 oz.APO-8
APD Oil — Heavy Duty (12-Pack) APO-8-12
AP Oiler WrenchAPOW
AP Coil PullerAPCP
AP Tool ChestAPTC

Battery-Powered Hammer

The battery-powered hammer, at 9½ lbs. with a powerful 36 V battery, feels lighter than most with its ergonomically balanced design. Fast, yet safe, this tool of choice lessens the fatigue of the splice team. Complete with two Litheon 36 VDC batteries and a charger. Bosch three-year warranty. Drive rod not included.

Number
RNBH-1
ph_rapidgunbattery

36 VDC ION Battery

Number
For use with RNBH-1
RN-BAT836
ph_36v_battery

Battery Charger

Number
For use with RN-BAT836
RN-BC830
ph_battery_charger

Corded Hammer

Light to handle, this powerful hammer utilizes 120 VAC, draws only 6½ amps, and provides a generous 10-foot power cord. Generates more than 3,500 blows per minute. Bosch three-year warranty. Drive rod not included.

Number
RNEH-1
ph_rapidguncord

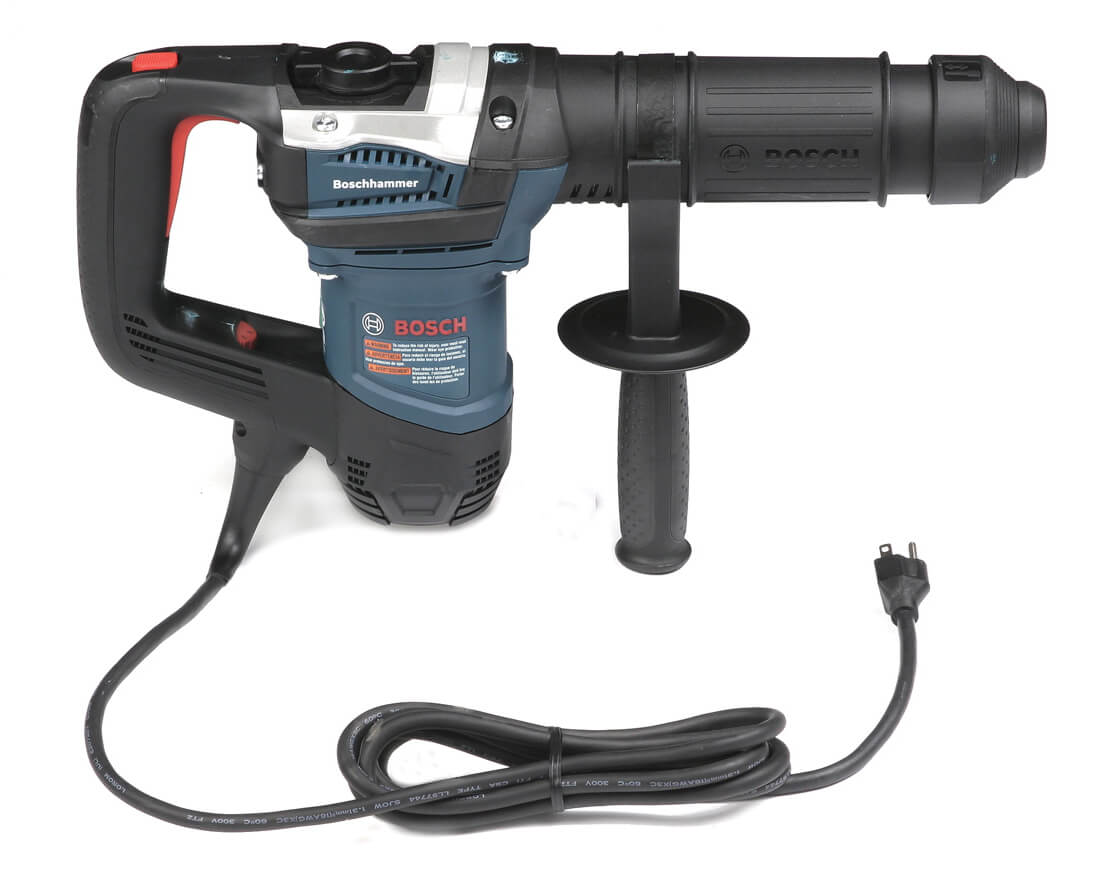

Corded Hammer

This 10.0-AMP tool gets the job done, delivering 5.6 ft.-lbs. of impact energy and a max of 2,800 BPM.  It uses the SDS-MAX system and has a 360° rotating auxiliary handle for better grip positioning, and an ergonomic grip area for better comfort.  RNDP-MAX driver not included.

Number
RNEH-2
ca_shot_1_bosch_tool

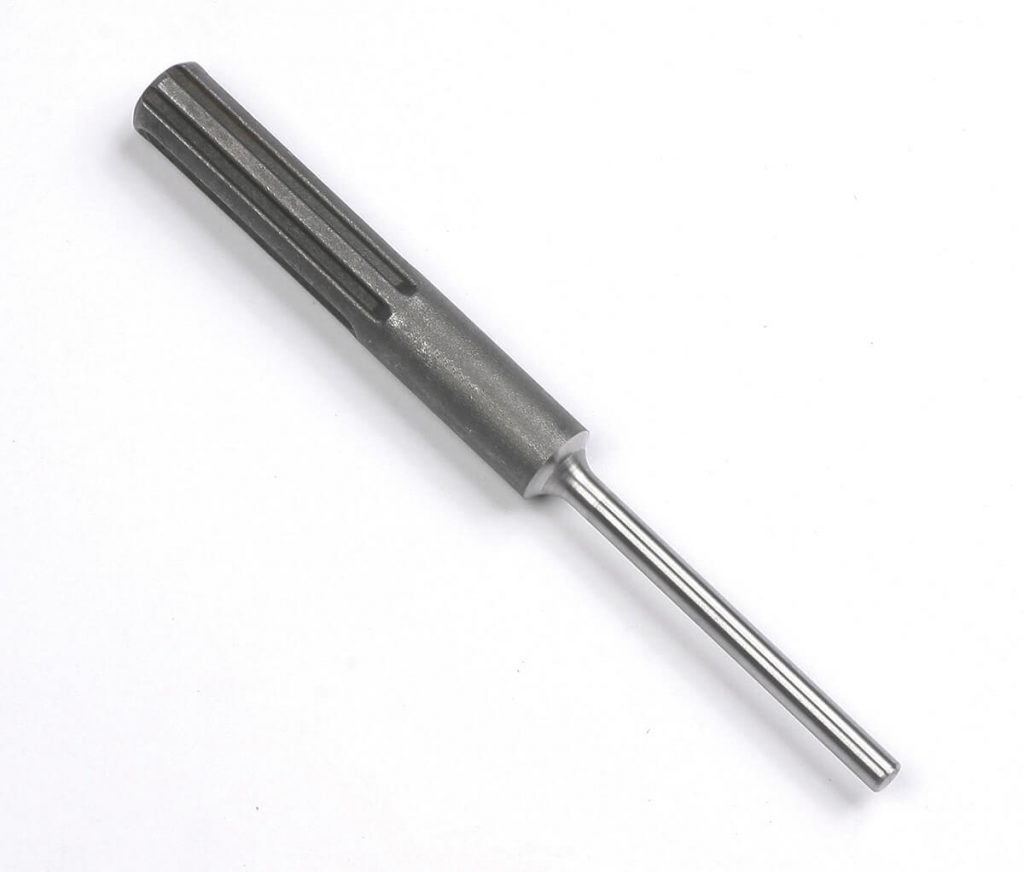

SDS Drive Rod

Riv-Nail drive rods are designed to fit both battery and corded power hammers.

Number
RNDP-1
RNDP-MAX
ph_rapidrod
rndp-max-sds-drive-rod

Riv-Nail Multi-Tool

The Riv-Nail Multi-Tool is designed and built with lightweight aluminum and ultra-high molecular weight (UHMW) polyethylene locator guides mounted directly on the top of the channel. Patented anvil plates set the rivets.

Riv-Nail™ Single-Driver System.

For Use With

R-2 through R-6 with 1/4" GAUGE ROD
Number
RNAT-36-MDA1
RNAT-42-MDA1
RNAT-48-MDA1
RNAT-54-MDA1
RNAT-60-MDA1
RNAT-72-MDA1
RNAT-84-MDA1

For Use With

R-5 1/2, R-6, with 7/16" GAUGE ROD
Number
RNAT-36-MDA2
RNAT-42-MDA2
RNAT-48-MDA2
RNAT-54-MDA2
RNAT-60-MDA2
RNAT-72-MDA2
RNAT-84-MDA2

For Use With

RC-8 TRC-6, with 7/16" GAUGE ROD
Number
RNAT-60/8-MDA2
RNAT-72/8-MDA2
RNAT-84/8-MDA2

Guide Blocks

Riv-Nail Guide Blocks are available in 20- and 40-rivet capacities. Lightweight, wear-resistant UHMW polyethylene and the pilot nail guides provide the most accurate placement of rivets in the belt splice.

RNQL500

5 Riv-Nail Guide Block 20 Rivets/Block

For use with: R-2, R-3, R-5, R-5 1/2, R-6, TR-4
Number
RNQL 500

5 Riv-Nail Double-Wide Guide Block 40 Rivets/Block

For use with: R-2, R-3, R-5, R-5 1/2, R-6, TR-4
Number
RNQL 500DW

8 Riv-Nail Double-Wide Guide Block 32 Rivets/Block

For use with: TR-6, R-8
Number
RNQL 800

8 Riv-Nail Double-Wide Guide Block 64 Rivets/Block

For use with: TR-6, R-8
Number
RNQL 800DW

Riv-Nail Release Tool

Number
RNQL-500R
Release tool for Riv-Nails.
